Conformal Cooling

Fathom specializes in producing injection molding tooling with integrated conformal cooling channels using Direct Metal Laser Sintering (DMLS) technology. DMLS produces solid 3D printed metal parts by melting metal powder with a focused laser beam layer-by-layer. Building with layers allows for the manufacture of highly complex geometries directly from 3D Computer-Aided Design (CAD) data. This is especially true for part geometries where slides, inserts or other tool components with complex characteristics are required.

Tooling is a primary application for DMLS. This allows tooling inserts and components to be manufactured at a rapid pace. On top of the value of short turnaround times, additional value is created by the unique geometric freedom of design. This helps to improve both the quality and economics of injection molded parts by reducing cycle time and scrap while increasing productivity by 30%-60%. DMLS tools are used to produce millions of parts for injection molding operations. The challenge of integrating a system of this kind is to find the optimal design for the channels. Complexity of the channel design does not impact the manufacturing process, as the DMLS system builds channels directly into the tool. The advantages of these systems maintain a wide range of benefits for injection molding production.

Injection Molding Advantages //

Tool Geometry / /

Routing options for cooling channels are almost infinite. This makes it possible to create an ideal cooling channel with a well-defined distance to the cavity. A conventional drilled cooling mechanism cannot achieve this. Cooling channel cross sections can take almost any shape (e.g., oval vs. round). Turbulence of the coolant within the system can thus be controlled by actively choosing different cross sections and by switching between different cross sections. As a result, turbulence inside of the coolant is generated close to the cavity along the entire channel path. Changing cross sections or forking the cooling channel can be done easily without splitting up the form. This allows for additional heat/cooling advantages in areas that cannot be reached by conventional methods.

Injection Molding Process / /

Effective mold temperature control systems save time and production costs. Quality of injection molded parts can be improved through better control of the injection molding process. Warping and sink marks can be minimized by evenly cooling the injected plastics, which also minimizes internal stress and reduces or eliminate scraps. Internal stresses can be avoided in order to produce better parts with the same amount of required material. Certain geometries can only achieve required quality standards with conformal cooling. Combined systems with separate cooling and heating channels are also possible. The split between main systems for the control of the global temperature, and specific systems for the handling of close to cavity critical temperatures, can be performed with DMLS.

Costs / /

Heating and cooling ability can be expanded at critical parts inside the tool, which cannot or only partially be reached by conventional methods (e.g., long and lean cores, areas around hot-runners or small sliders). Du to this, use of special copper heat conductors or other complex measures becomes obsolete. Mold cavities can be under-cooled to reach optimal cycle times by minimizing cool down times in tooling cavities. Even temperature levels can help to improve tool life time—especially relevant in die casting tools that are exposed to extreme temperature variations.

Injection Molding Quotes in As Soon As One Business Hour / / Get A Quote

Injection Molding Disadvantages / /

• Cavity to cooling channel distance differs as only straight-line drilling channels are possible causing non-uniform heat dissipation.
• Uneven temperature levels on the cavity surface.
• Uneven cooling-down processes resulting in internal stresses that negatively impact part quality (warpage).
• Actively influencing cooling-down processes inside the melt often cannot be achieved.

Design for Conformal Cooling / /

The distance from cavity to cooling channel differs as only straight line drilling channels are possible in top figure, and as a consequence, the heat dissipation cannot take place uniformly in the material. This results in //

• Uneven temperature levels on the cavity surface
• Uneven cooling-down processes result in internal stresses & causes a negative impact on quality (warp)
• Actively influence the cooling-down process inside the melt can often not be achieved
• Clogging of dead drilling ends creates areas with zero flow velocity thus facilitating dirt agglomeration

The drilling procedure itself is not without certain risks. In the case of deep drilling there is always a danger to hit ejector holes (wandering drill) or the drill could break. As a consequence, the whole insert could be unusable.

Design recommendations for the layout of heating/cooling channels with DMLS are the same as the ones given for conventionally designed channels as both are based on the plastic recrystallization and heat conductivity theories. In order to achieve a constant temperature level, the channel diameter should be chosen depending on the distance between the heating/cooling channel and cavity.

Depending on the design of the product, the optimal diameter should be chosen between 4-12 mm. Some inserts, such as closely placed ejector pins or parts with thin walls, make it difficult to adhere to this rule. DMLS can build channels down to 1 mm when using specially treated fluids to avoid clogging. Simulation software can be an especially useful resource to prepare your part for printing. If you have any design questions, talk to a Fathom expert before submitting your CAD file.

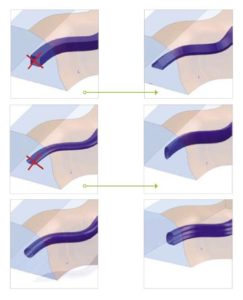

With DMLS, it is possible to vary the channel cross section shape of the manufactured tool inserts for a variety of complex shapes. The feasibility criterion supposes a self-supporting cross section, which means the angle of overhanging areas should be above 40° to horizontal.

On the last picture the cooling performance can be increased due to the ribbed shape and the increased turbulence in the channel.

Injection Molding Quotes in As Soon As One Business Hour / / Get A Quote

References //

• Mike Shellabear
• Joseph Weilhammer
• Tooling Applications With EOSINT
• Olaf Zollner

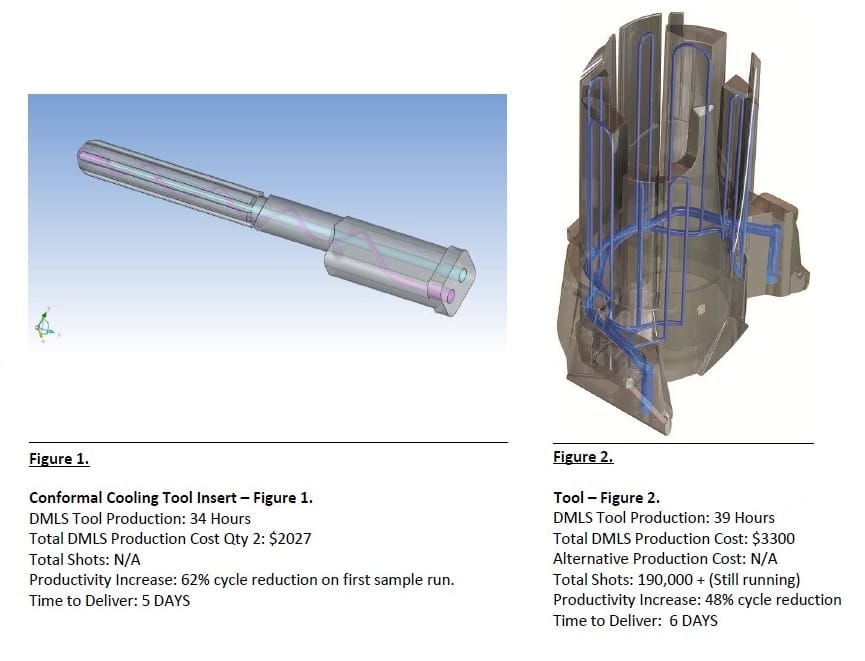

Customer Case Study / /

DMLS opens new frontiers for the implementation of very efficient heat/cooling systems. DMLS also offers design possibilities for the manufacturing of high-performance tools without having to consider the limitations which can characterize conventional processes. The real challenge is designing the correct channels during the first steps of the project. The manufacturing process of the mold inserts is not influenced by the complexity of the chosen cooling solution. This is because the DMLS machine simply builds the channels at the same time, without having any major impact regarding production time.
